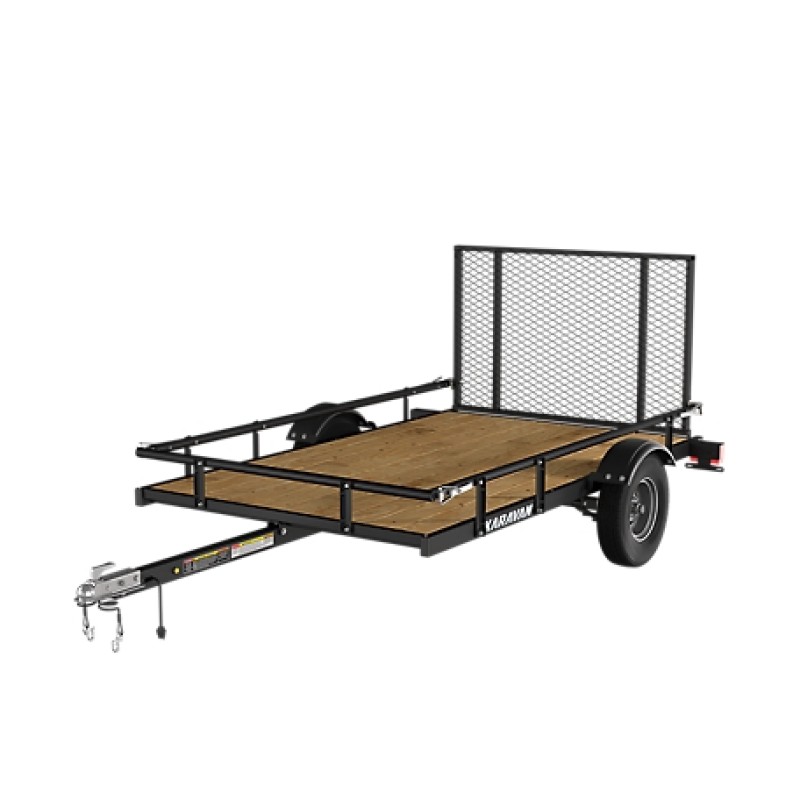

Exclusive 5 x 8 ft. Steel Utility Trailer w/ Slide Rails. with a lower ground clearance, this trailer is perfect to be pulled by a car and strong enough to haul a smaller riding mower or ATV. The Patent Pending Slide-Down Rail System offers unique functionality. Reliability is built in with smart lighting and wheel bearing systems. It looks good too, with a powder coat finish as attractive as it is durable.
- SLIDE-DOWN RAILS Allows easy side loading of longer and wider loads; removable
- WELDED TUBULAR + ROLL FORMED STEEL FRAME Clean look that provides strength while it also conceals and protecting wiring
- QUIETTOW COMPONENTRY Less noise via lockable tensioner latches, nylon bushing springs
- HEAVY DUTY REMOVABLE RAMP Expanded metal to support the loading of heavy equipment
- WOOD PLANK FLOOR Treated 2 x 6 in. deck boards protect against decay and termites
- COATED SELF-COILING SAFETY CABLES Cables coil out of the way when not in use
- HIGH RELIABILITY SHORTFREE LIGHTING SYSTEM Fully grounded and all plug (no Scotchloks); wiring is concealed
- SURE-LUBE WHEEL BEARING GREASE SYSTEM Allows quick and clean greasing for easy maintenance
- MOLDED FENDER
Specifications
| Specification | Description |
|---|---|
| Brand | Karavan |
| Country of Origin | Made in USA |
| Approximate Trailer Size (W x L) ft. | 5 x 8 |
| Axle Size | 2,000 lb. |
| Bed Length | 8 ft. |
| Bed Width | 5 ft. |
| Coupler Size | 2 in. |
| Coupler Type | A-frame |
| Empty Weight | 500 lb. |
| Features | Slide-Down Rails, Welded Tubular & Roll Formed Steel Frame, QuietTow Componentry, Heavy Duty Removable Ramp, Wood Plank Floor, Coated Self-Coiling Cables, ShortFree Lighting System, Sure-Lube Wheel Bearing Grease System, Molded Fender |
| Floor Material | Wood |
| Frame Material | Steel |
| Gate Length | 36 in. |
| Gate Width | 60 in. |
| Gross Vehicle Weight Rating | 2,000 lb. |
| Hitch Type | 1-Ball |
| Number of Axles | 1 |
| Number Of Ramps | 1 |
| Number Of Stalls | 0 |
| Number Of Windows | 0 |
| Ramp Type | Back |
| Rear Door Style | Ramp |
| Tire Size | 4.8 x 12C |
| Tongue Length | 46 in. |
| Tongue Type | Straight |
| Trailer Brake Type | None |
| Trailer Features | Removable Ramp, Wood Floor, Ramp Included |
| Trailer Max Load Capacity lb. | 1500 |
| Warranty | Karavan Trailers, Inc. warrants each new Karavan Trailers trailer to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase or two (2) years from date of manufacture. |
