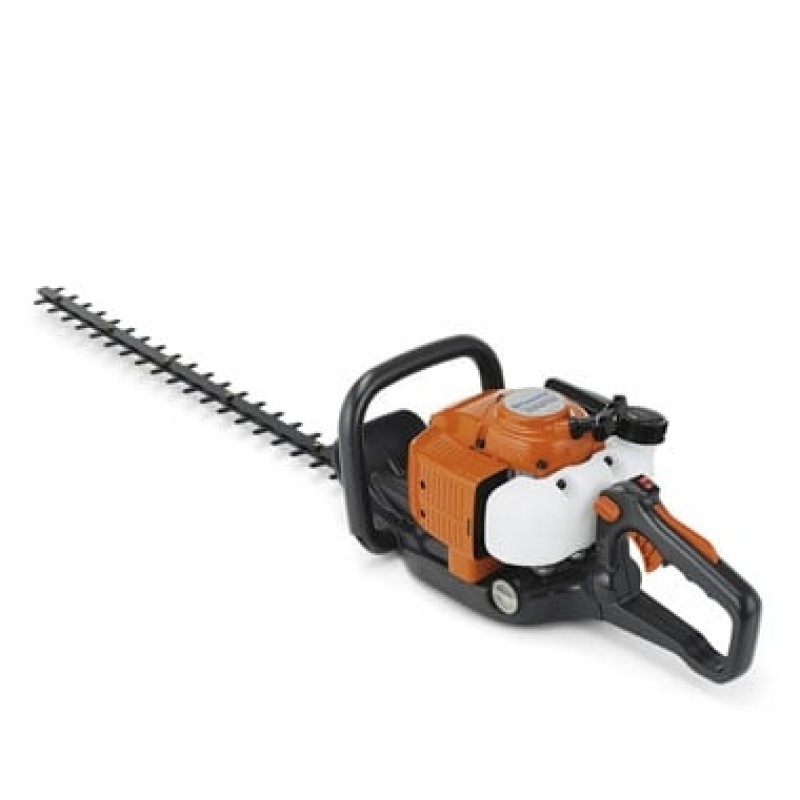

Features for the Husqvarna 226HD75S
The Husqvarna 226HD75S is a double-sided hedge trimmer with an adjustable rear handle. The hardened steel blades on both sides of the cutting knife allows for more flexibility to trim and shape hedges. The X-Torq engine and durable gear components ensure long-life and outstanding performance in landscaping environments. Take the stress and strain out of hedge trimming, with the Husqvarna 226HD75S.
- X-Torq Engine:23.6cc engine that increases fuel efficiency by 20% and lowers emissions up to 60%.
- Dual-sided:The double-sided knife allows you to cut from either side, perfect for shaping hedges.
- Stand Alone Starter:The engine and starter have been designed so the machine starts quickly with minimum effort.
- Hardened Steel Blades:Hardened steel blades can cut various twig widths.
- Adjustable Rear Handle:Adjust the rear handle to cut the sides and tops of hedges.
- Long Cutter Bar:Long 30 inch cutter bar for extended reach.
- Durable Gears:The gear components provide long lasting operation in the toughest conditions.
- Air Purge:Removes air from carburetor and fuel system for easy starting.
Technical Specs for the Husqvarna 226HD75S*
Cutting Equipment
Knife Length : 29.53 inch double-sided knife
Dimensions
Weight (lbs.) : 19 pounds
Emission, Vibration and Noise
Vibration Level (ahv, eq) front / rear handle : 2.5/2.1 m/s²
Sound Pressure Level at Operator's Ear : 91 dB(A)
Sound Power Level, Gauranteed (LWA) : 104 dB(A)
Transmission
Gear Ratio : 5.11:1
Cutting Equipment
Teeth Opening : 1.1"
Recommended Max. Twig Diameter : .87"
Cutting Speed : 4100 cut/min
Emission, Vibration and Noise
Exhaust Emissions (CO average) : 329 g/kWh
Exhaust Emissions (HC average) : 54.7 g/kWh
Exhaust Emissions (NOx average) : 0.6 g/kWh
Engine Specification
Electrode Gap : 0.03"
Spark Plug : NGK CMR7H
Idling Speed : 3000 rpm
Fuel Consumption : 412 g/kWh
Fuel Capacity : 16.91 fl oz
Carburetor : Walbro
Maximum Recommended Engine Speed : 10500 rpm
Maximum Power Speed : 8000 rpm
Displacement(cc) : 23.6cc
Power : 1.14 hp
Engine Type : 2-Cycle
